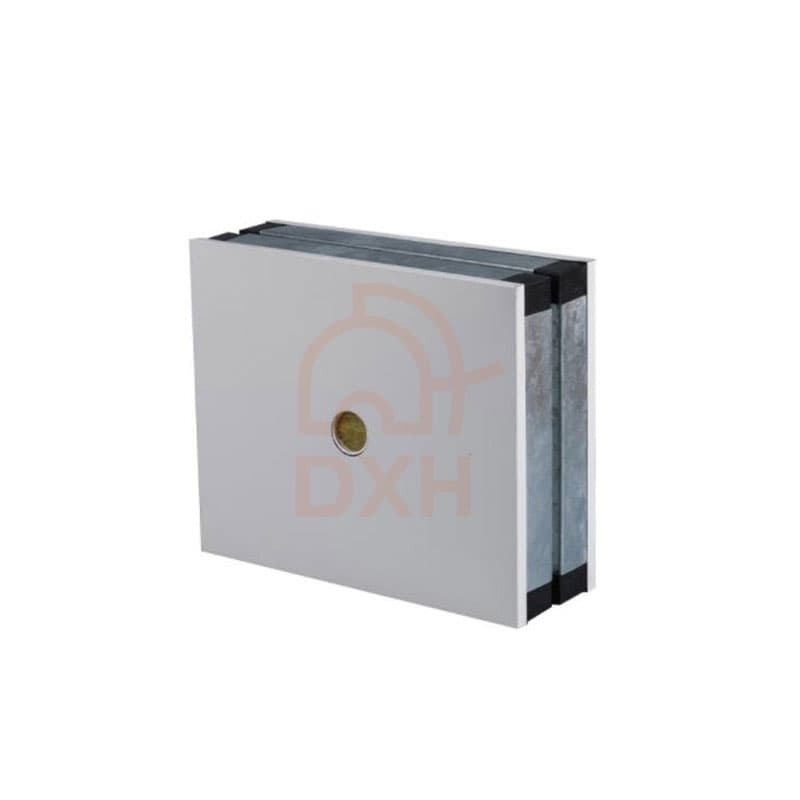

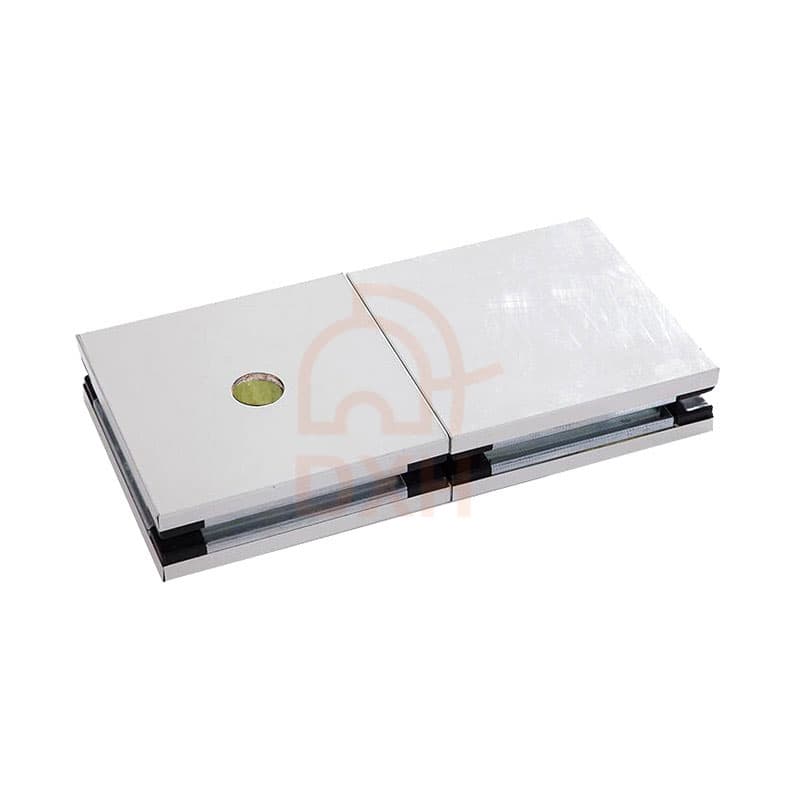

Handmade Rock Wool Sandwich Panel
Handmade rock wool sandwich panels are made with rock wool as the core material, metal panels as surface layers, and edge sealing as a composite panel.
- Core Material
- Rock Wool Core
- Thickness
- 50mm, 55mm, 60mm, 75mm, 100mm
- Width
- 900mm, 980mm, 1180mm, 1150mm. Non-standard panels in any width.
Product overview
Handmade rock wool sandwich panels are high-performance composite panels featuring rock wool as the core material, metal panels as surface layers, and edge sealing as auxiliary structures. Unlike mechanically made panels from automated assembly lines, these panels are manually assembled, offering superior structural stability and customization flexibility.
With outstanding fire resistance, sound insulation, thermal insulation, and eco-friendly properties, hand-made rock wool sandwich panels are a preferred choice for cleanrooms, electronics workshops, pharmaceutical facilities, laboratories, and food processing clean zones.
Specifications
Advantages of Handmade Rock Wool Sandwich Panels
Class A Fire Rating: Rock wool is an inorganic, non-combustible material meeting Class A fire standards. It maintains structural integrity even under high temperatures.
Thermal Insulation: Rock wool exhibits low thermal conductivity (typically 0.035–0.045 W/m·K), effectively blocking heat transfer.
Sound Absorption: Handmade rock wool sandwich panels can significantly absorb sound, making them ideal for electronics, medical facilities, and other spaces with stringent acoustic requirements.
Green Building Structure: Rockwool contains no harmful volatile compounds such as formaldehyde or benzene, emits no odor, and does not irritate, meeting green building requirements.
Installation Methods for Handmade Rockwool Sandwich Panels
Wall Installation: Nesting or interlocking installation via aluminum profile stud structures.
Ceiling Installation: Use light steel framing and suspension rod systems to assemble rock wool panels as cleanroom ceiling panels.
Custom Assembly: Reserve openings for purification equipment, ductwork, doors, and windows to achieve high-precision structural adaptation.
During installation, critical factors such as joint sealing, edge treatment, and environmental cleanliness must be addressed to ensure system performance stability and longevity.
Common Applications
Hand-made rock wool sandwich panels serve diverse scenarios, including:
Cleanrooms and GMP Facilities: Can offer fire safety and cleanliness standards for walls in cleanrooms, pharmaceutical, and electronics manufacturing.
Industrial and Commercial Buildings: Use in roofs, walls, ceilings, and firewalls for warehouses and offices.
Residential Housing: Offering energy-efficient partitions and cladding for homes and apartments.
Special Applications: Provide sound barriers, marine insulation, and acoustic solutions for high-traffic areas.
Cowinlife Homes: Key components for prefabricated buildings, ensuring thermal insulation and fire resistance in modular houses.
Contact our experts today for a free consultation, samples, or custom design.
Frequently Asked Questions
Specifications
|
Core Material |
Rock Wool Core |
|
Thickness |
50mm, 55mm, 60mm, 75mm, 100mm |
|
Width |
900mm, 980mm, 1180mm, 1150mm. Non-standard panels in any width. |
|
Length |
Customized to meet specific needs (generally ≤6000mm) |
|
Outer Facing |
Typically color-coated steel, galvanized steel, or stainless steel |
|
Edge Sealing |
Perimeter encapsulation using aluminum profiles, galvanized steel, or PVC profiles |
|
Connection Type |
Tongue-and-groove or concealed cam-lock (handmade flexibility) |
|
Bonding Agent |
Non-toxic, eco-friendly polyurethane adhesive or modified epoxy adhesive |
|
This structural design enhances the overall strength of hand-made rock wool panels, delivering superior sealing, fire resistance, and weather resistance. |
|
Reference specifications for this model. Confirm final values and units for your selected configuration.
Configuration
Core and facing
Confirm the core type and surface finish required for the wall or roof.
Panel dimensions
Share the required thickness, width, and panel lengths.
Technical documentation
Request supporting technical documents for the selected panel.
Delivery & installation
Transport
Confirm the destination, site access, and unloading arrangements with your inquiry.
Site preparation
Confirm site conditions and installation responsibilities for your selected configuration.
